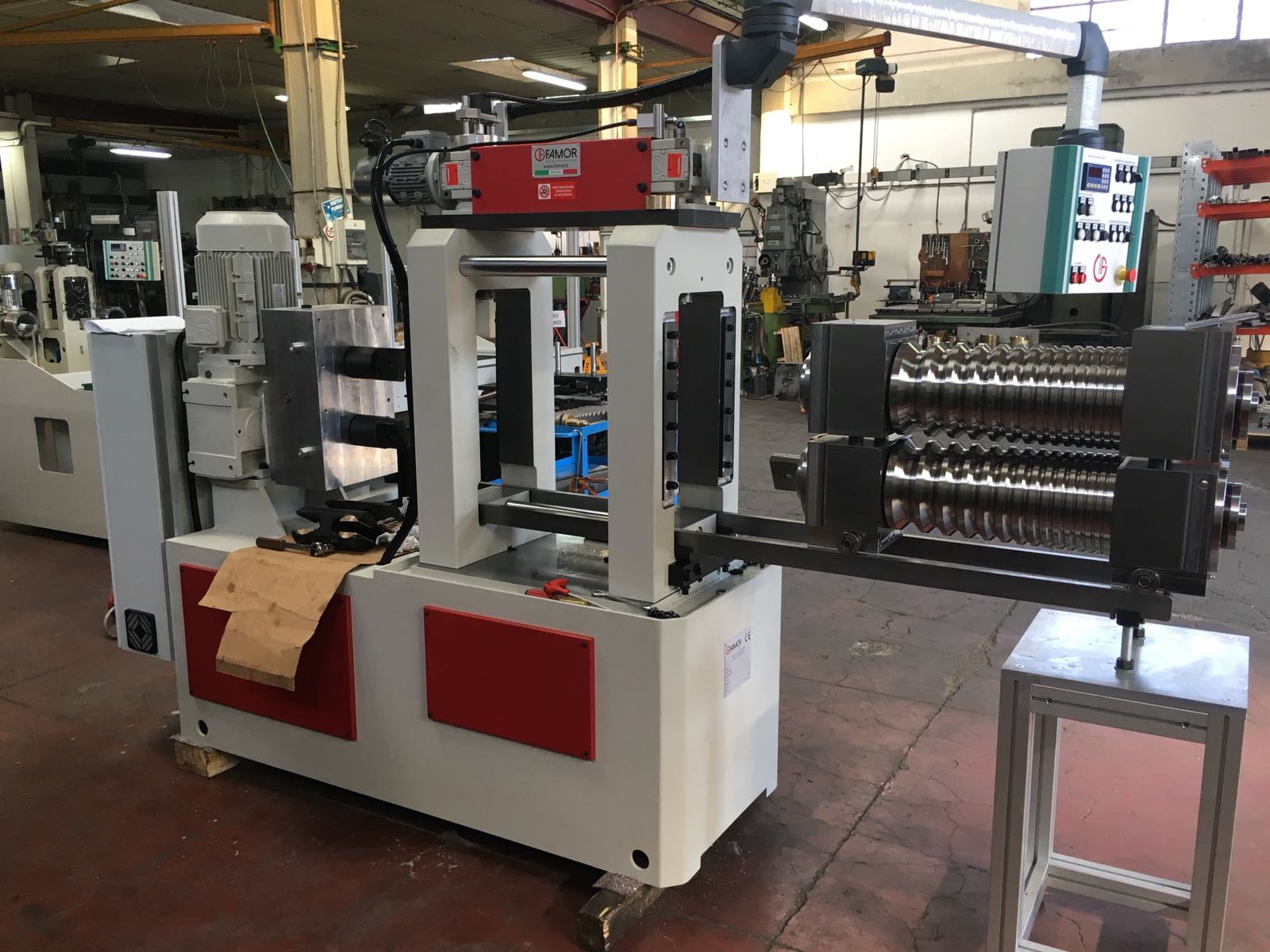

Duo Rolling Mill

d205x450 mm for wire

Duo Rolling Mill

d205x450 mm for wire

Rolls diameter 205 mm
Rolls width 450 mm
Rolls hardness 62-63 HRC
Max section wire on demand
Min section wire on demand
Grooves number and shape on demand
Work speed From 0 to 15 m/min
Main motor power 9,2 kW
Voltage - Tension on demand
Tolerance 0,04 mm
Machine Weight 3.200 kg
Materials to laminate on demand
Duo Rolling Mill d205x450 mm for wire Duo Rolling Mill d205x450 mm for wire Technical Details Rolls diameter 205 mm Rolls width 450 mm Rolls hardness 62-63 HRC Max section wire on demand Min section wire on demand Grooves number and shape on demand Work speed From 0 to 15 m/min Main motor power 9,2 kW Voltage - Tension on demand Tolerance 0,04 mm Machine Weight 3.200 kg Materials to laminate on demand
