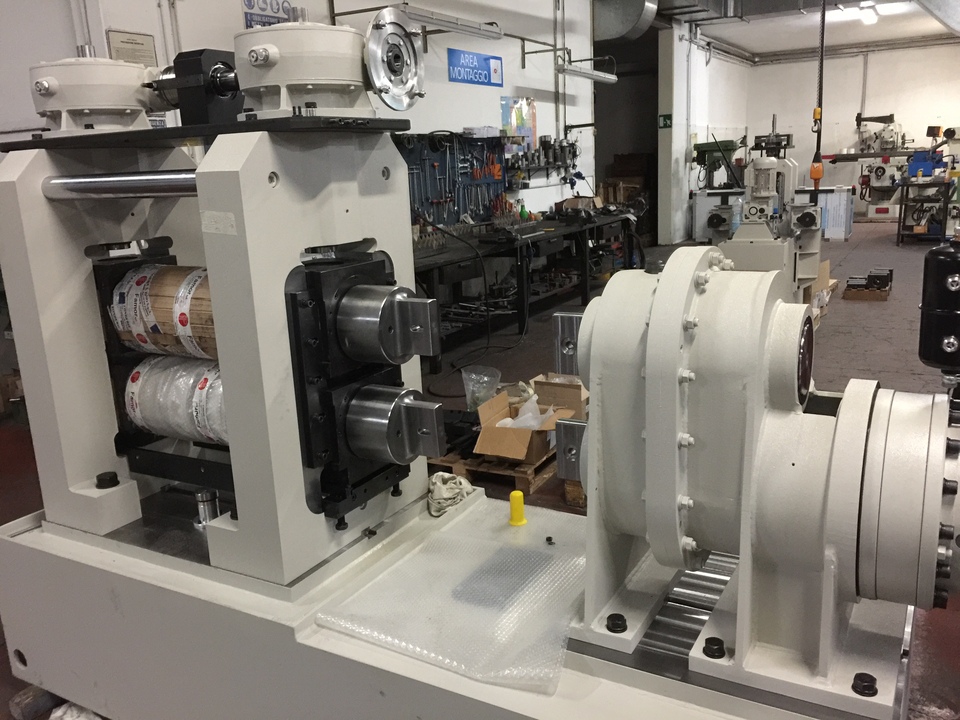

Duo Rolling Mill

d260x500 mm for wire

Duo Rolling Mill

d260x500 mm for wire

Rolls diameter 260 mm
Rolls width 500 mm
Rolls hardness 62-63 HRC
Max section wire on demand
Min section wire on demand

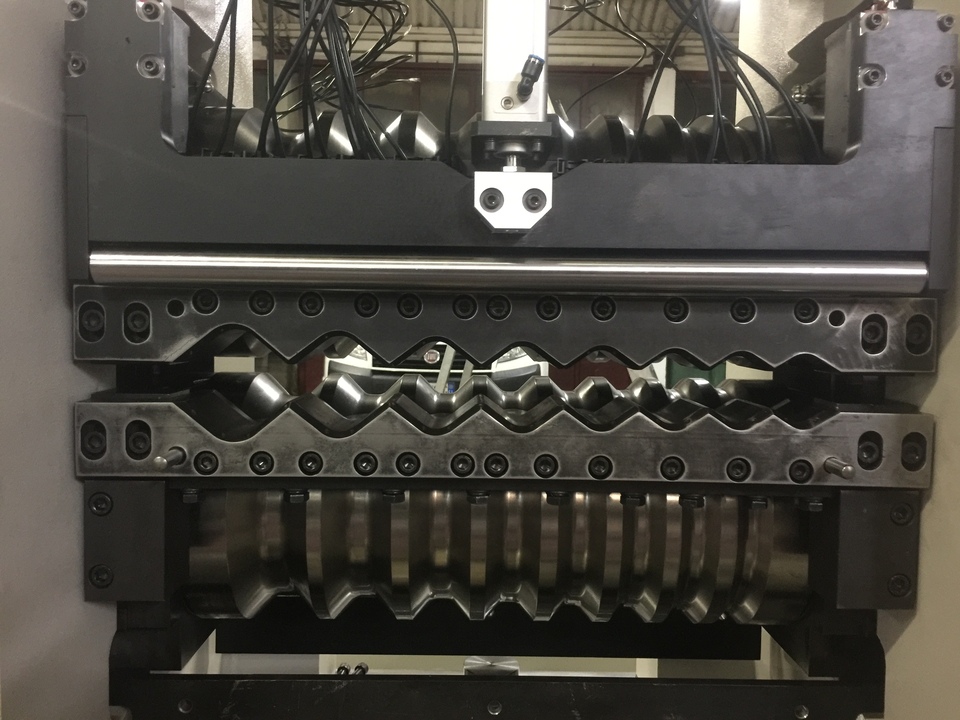

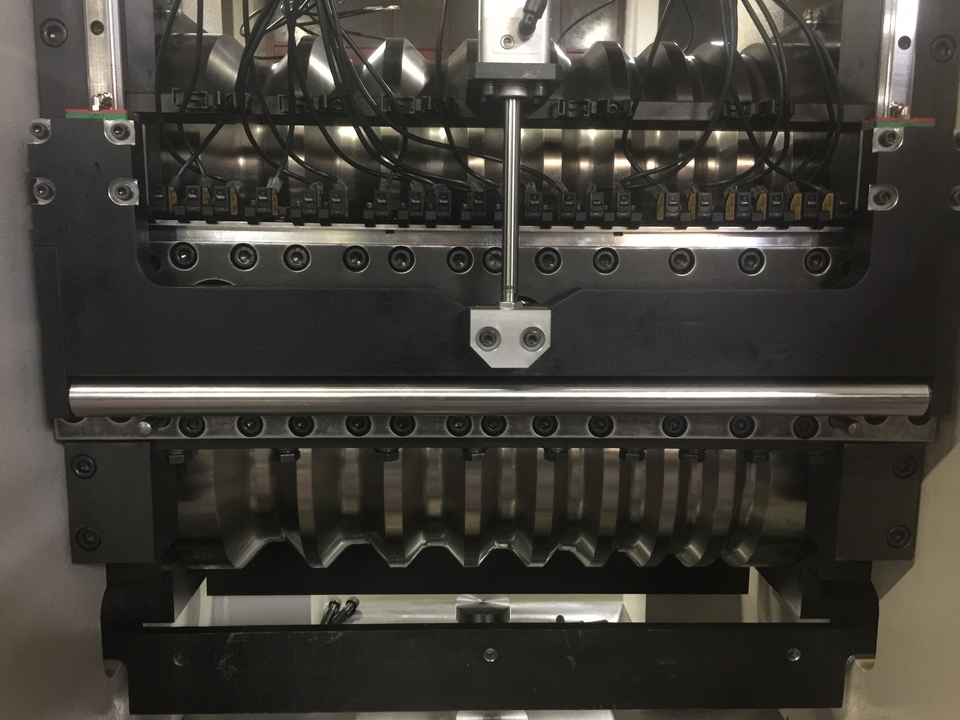

Grroves number and shape on demand
Work speed From 0 to 15 m/min
Main motor power 40 kW
Voltage - Tension on demand
Tolerance 0,04 mm
Machine Weight 5.500 kg
Materials to laminate on demand
Duo Rolling Mill d260x500 mm for wire Duo Rolling Mill d260x500 mm for wire Technical Details Rolls diameter 260 mm Rolls width 500 mm Rolls hardness 62-63 HRC Max section wire on demand Min section wire on demand Grroves number and shape on demand Work speed From 0 to 15 m/min Main motor power 40 kW Voltage - Tension on demand Tolerance 0,04 mm Machine Weight 5.500 kg Materials to laminate on demand
